Description

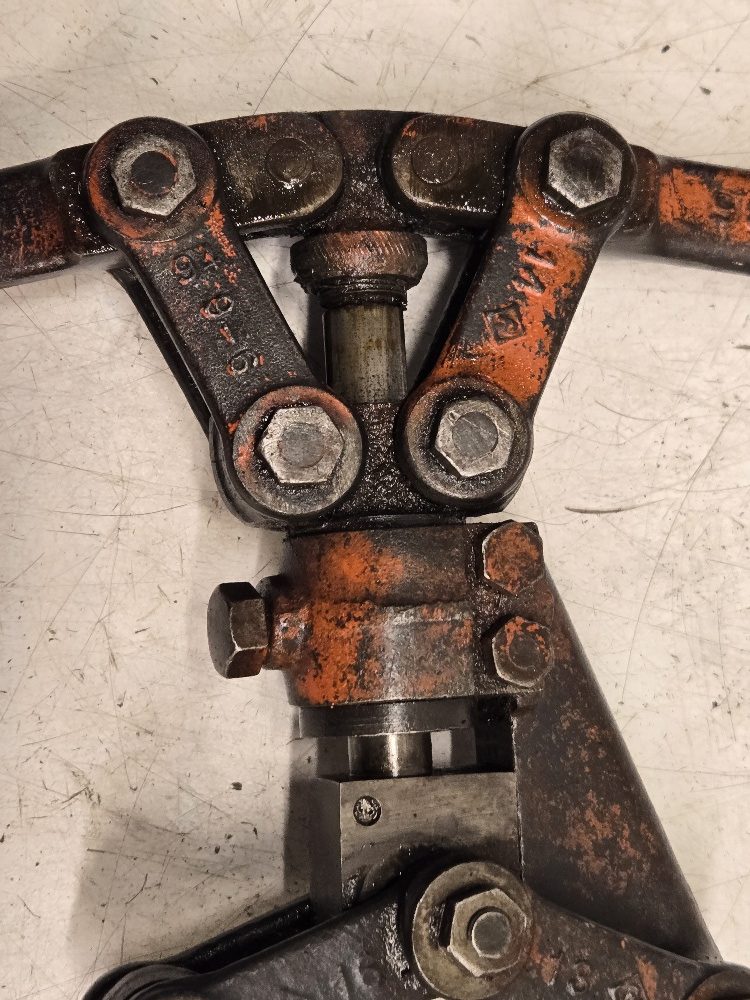

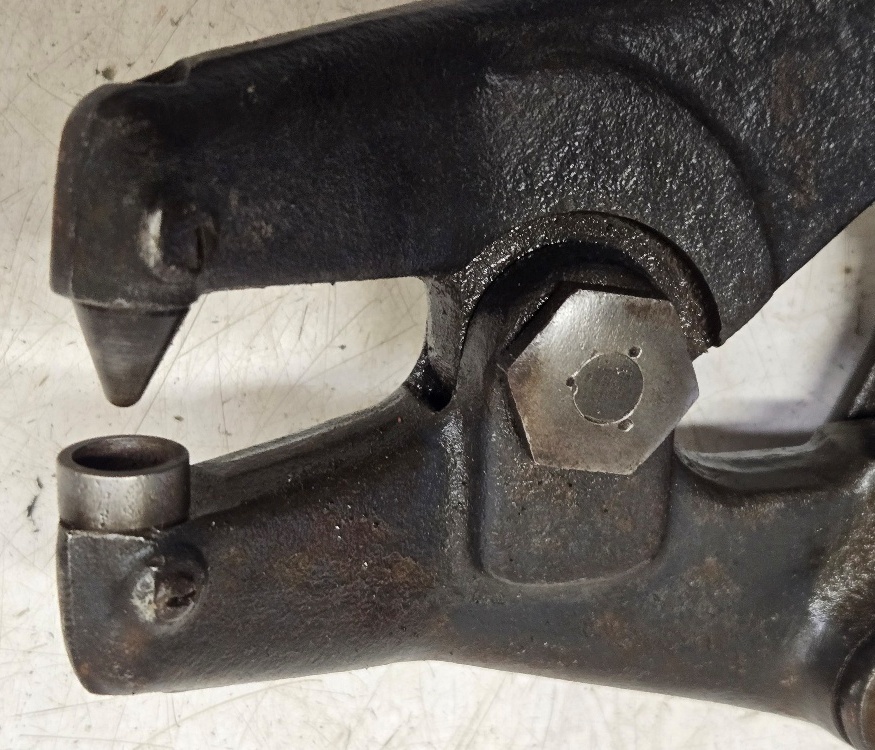

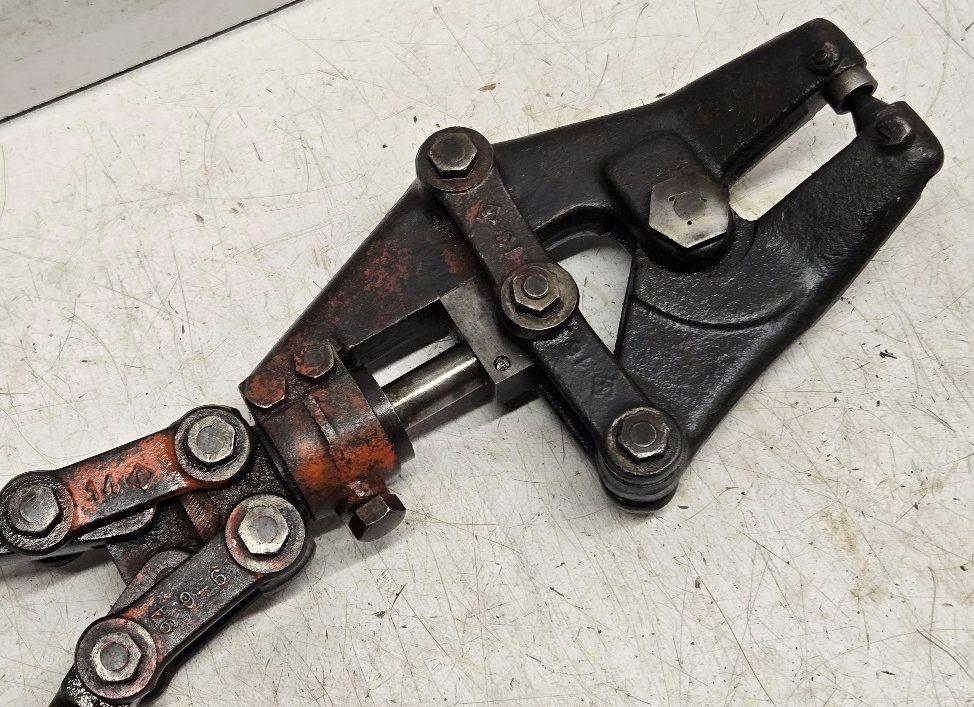

The No. 9 Universal Button Punch is used to indent several thicknesses of metal, forming a 3/8 dia. button or dimple that holds the pieces together securely. A common use is on standing seams on roofs to make a watertight fastening. The head of the punch rotates to any position. The ends of the jaws are offset at a 30 angle, permitting close quarter work and a clear view.
| Weight | 10 lbs |
|---|---|
| Dimensions | 26 × 2 × 6 in |
| Throat depth | 1 3/4 in/ 44.5 mm |
| Throat height | 5/8 in/ 15.9 mm |
| Length | 26 in/ 660.4 mm |
| Capacity | 3″ x 20 gauge mild steel/ 76 mm x 1.00 mm mild steel |
